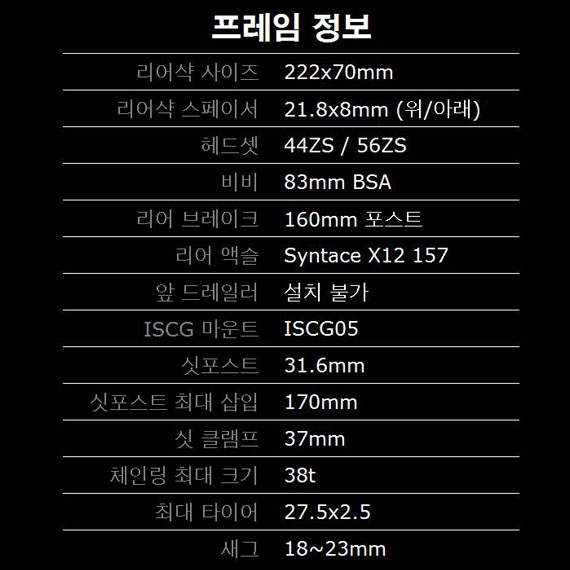

Transition TR11

트래블 : 195mm
휠사이즈 : 27.5"
리어샥 : Fox DHX2 (스프링 레이트 S-400, M-450, L-500)
프레임 사이즈 : S, M
실측무게 : S-4.04kg, M-4.16kg (리어샥, 액슬, 체인스테이/다운튜브 프로텍터 포함)

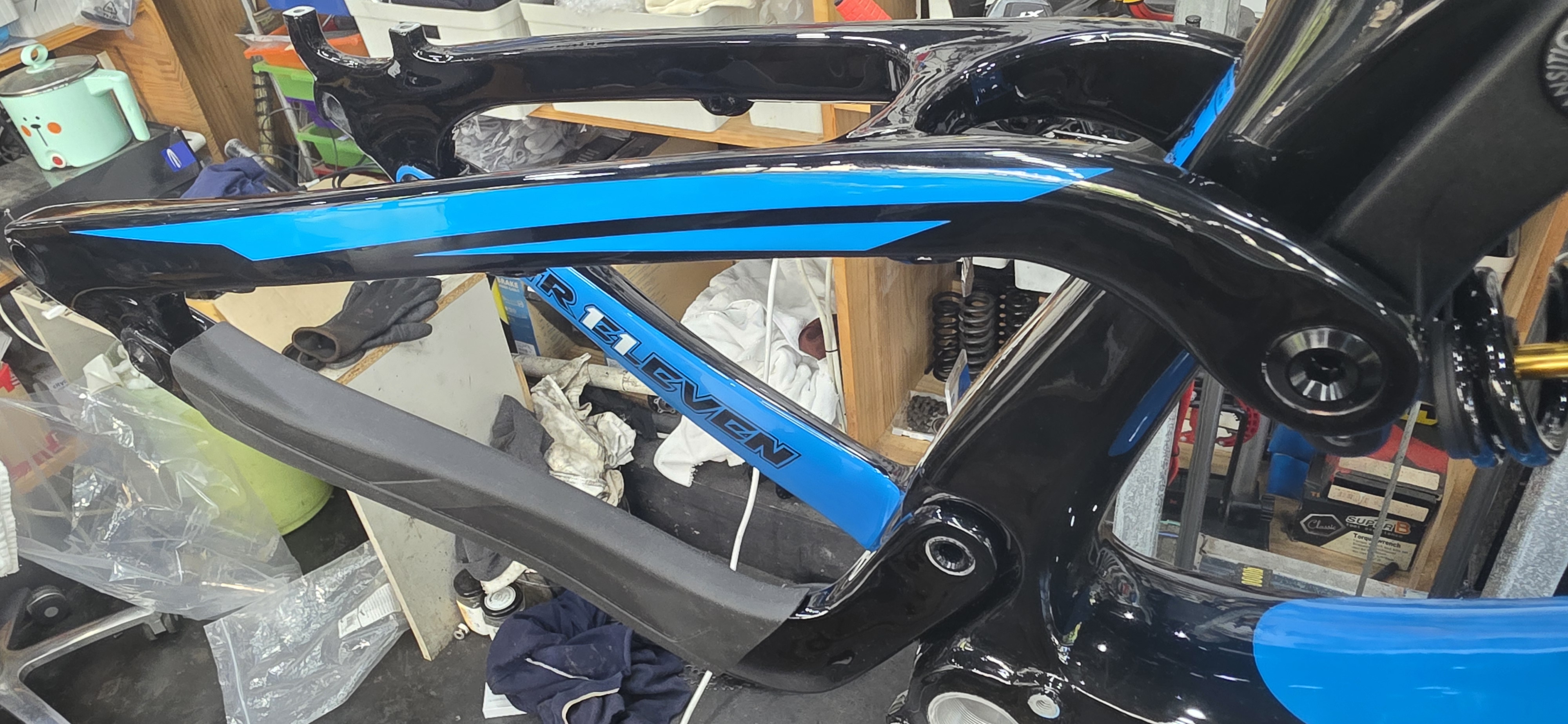

풀카본 프레임 (로커암-알루미늄)
일체형 체인스테이 / 다운튜브 프로텍터
Enduro MAX 베어링 사용
패트롤/스카우트 모델과 동일한 뒷드레일러 행어 사용

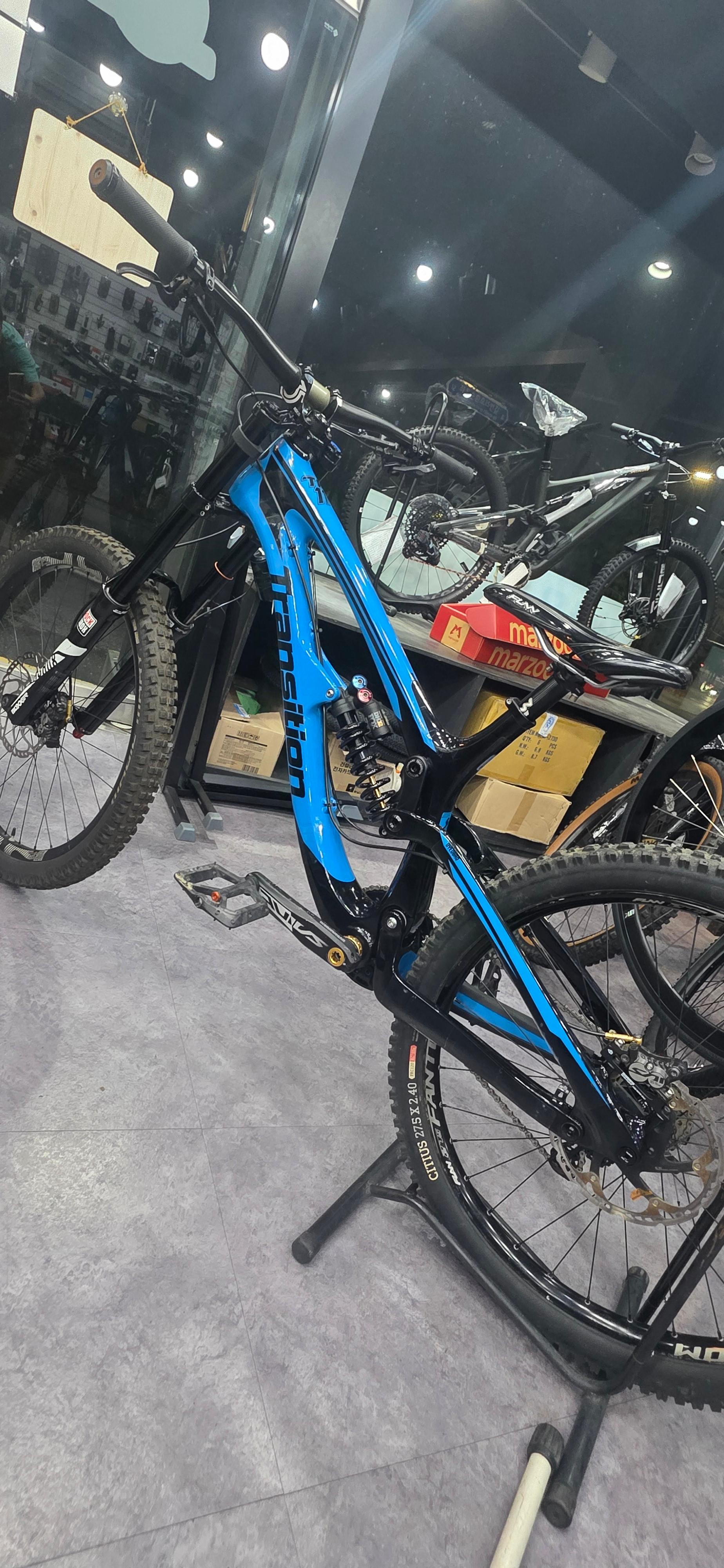

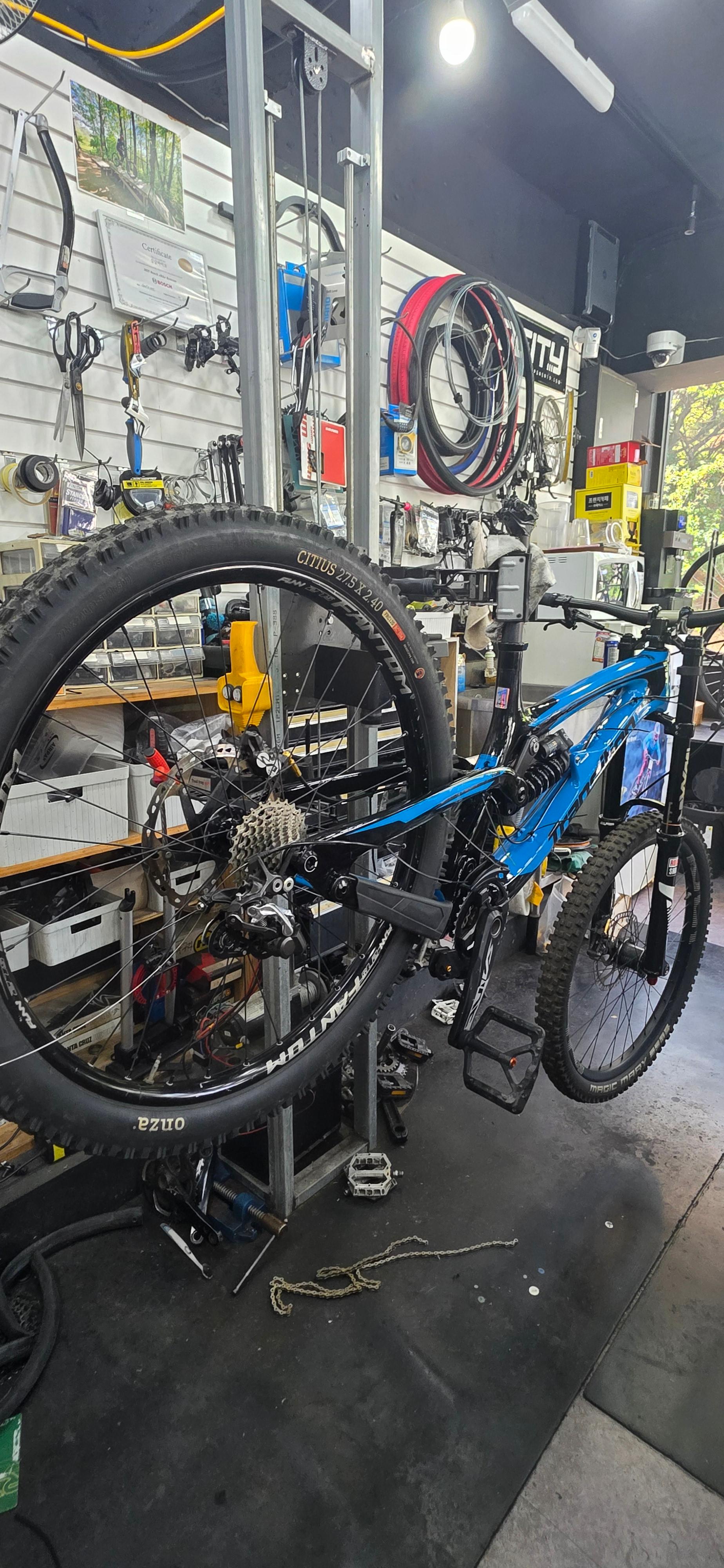

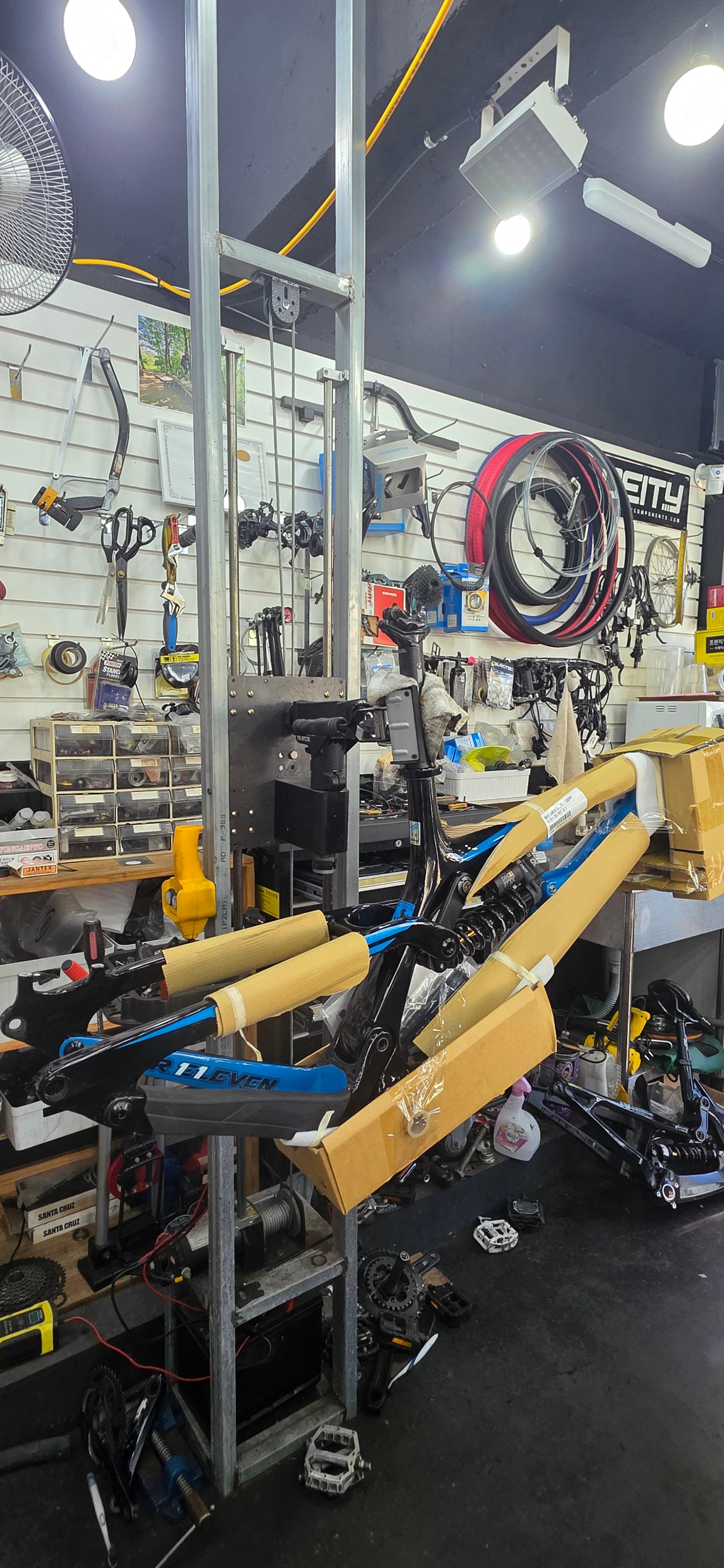

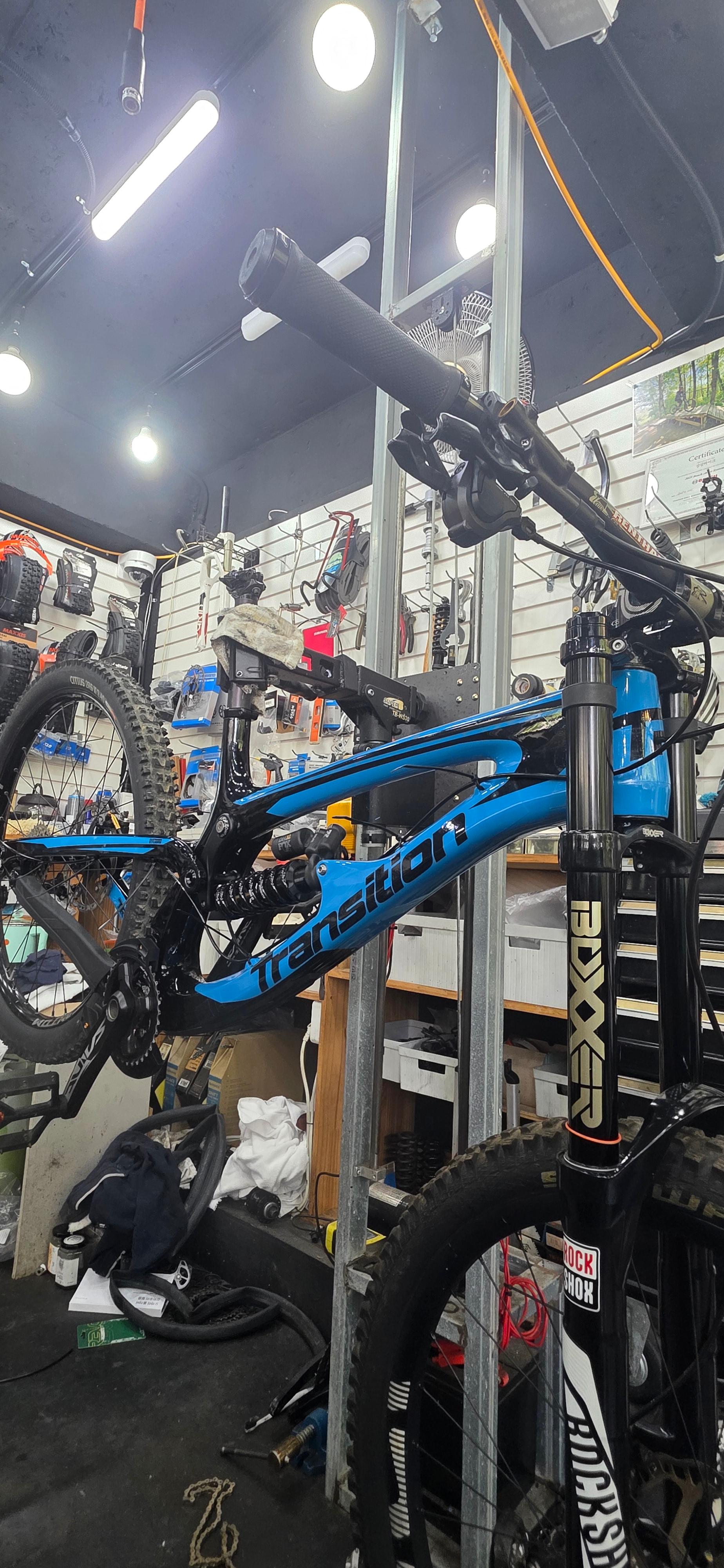

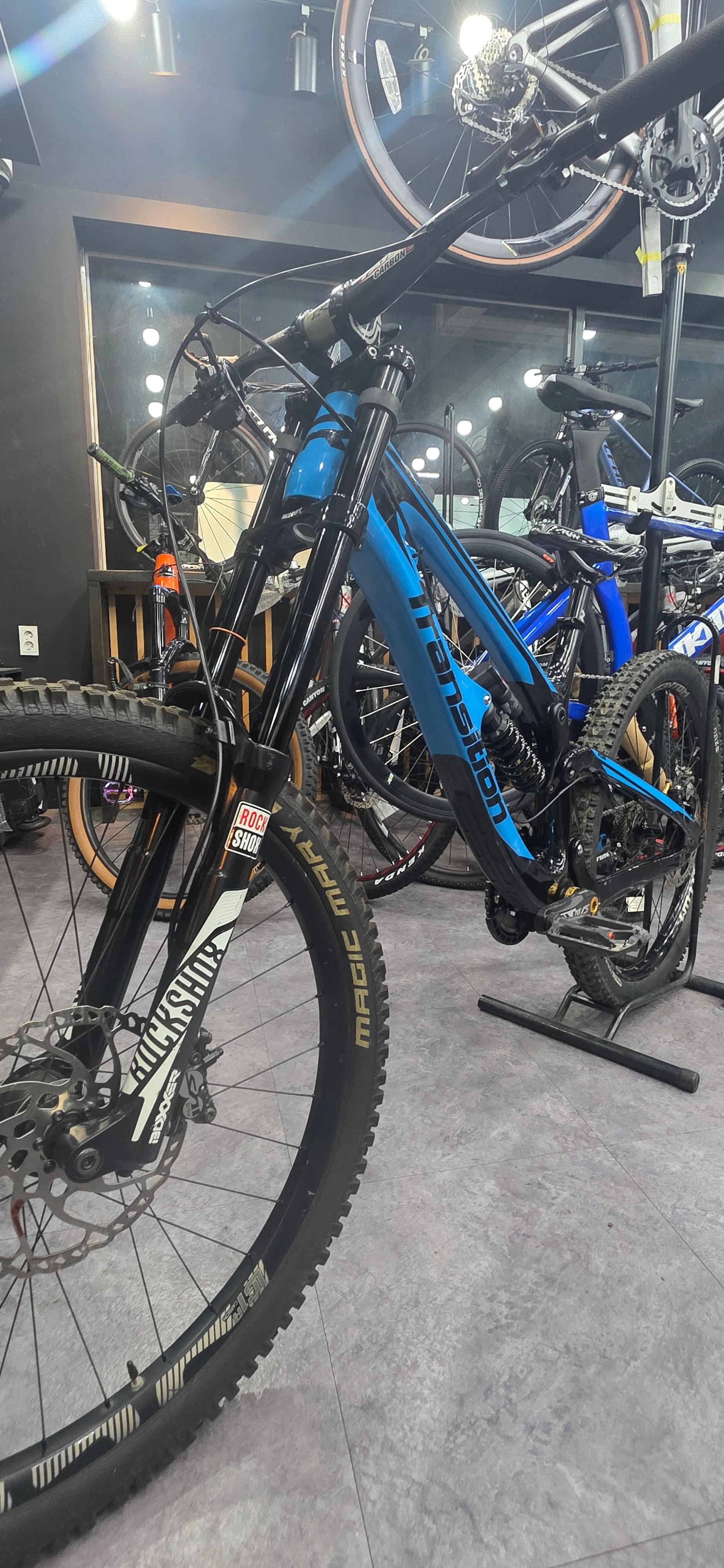

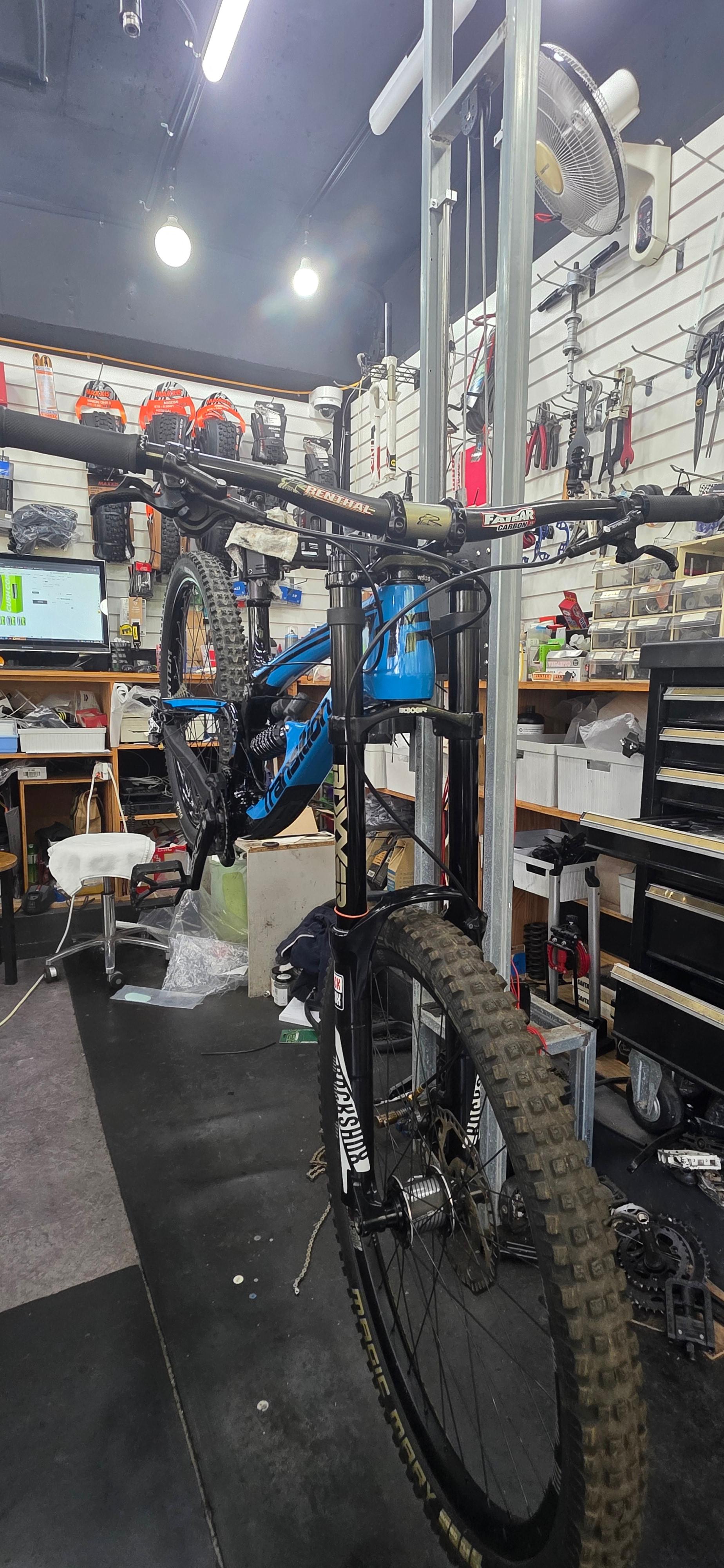

2025년 9월 16일 부산 삼삼바이크 용사장 조립 시작

Specifications

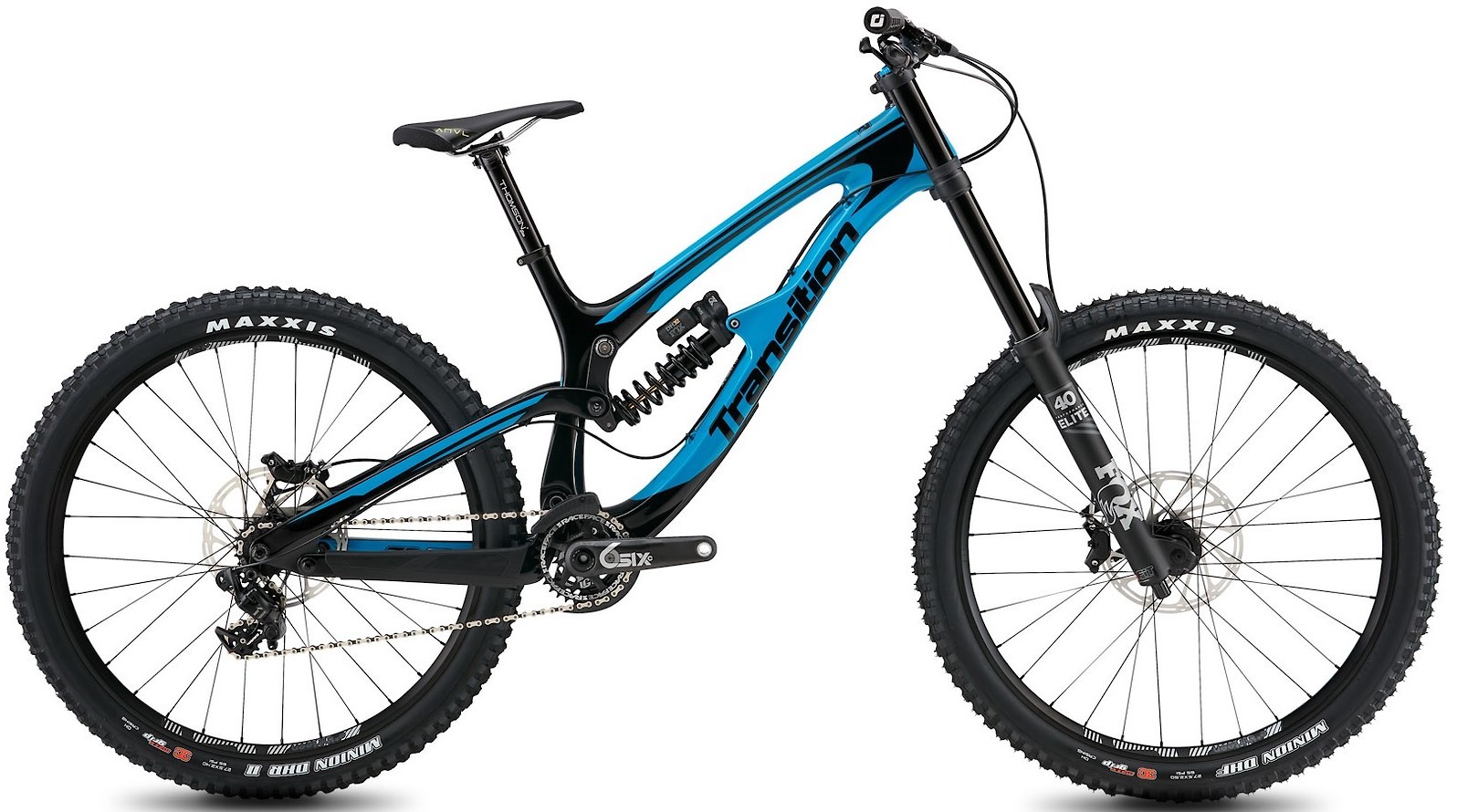

Product Transition TR11 X01 DH Bike
Model Year 2018
Intended Use
Downhill
Rider
Unisex

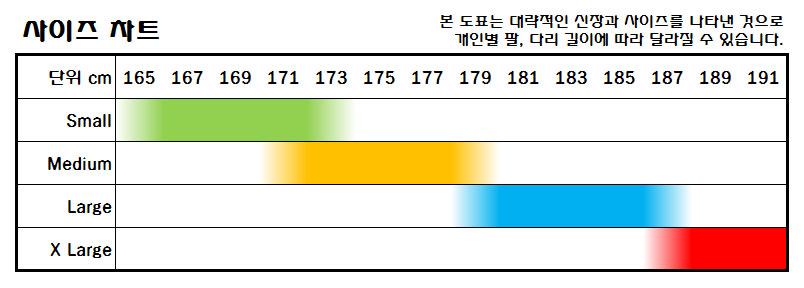

Sizes and Geometry
S

M

L

XL

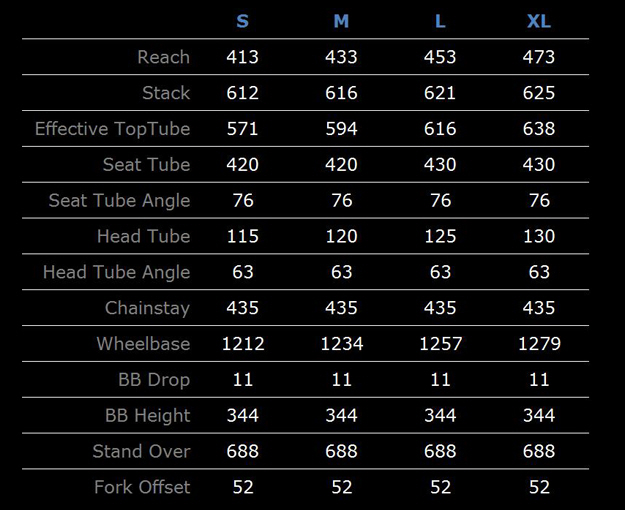

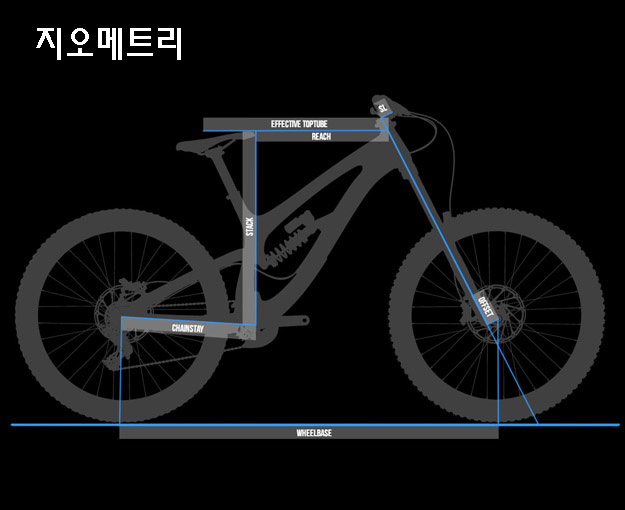

View Full Geometry
Sizes Additional Info
Wheel Size
27.5" (650b)
Frame Material
Carbon Fiber
Frame Material Details Full carbon front triangle, chainstay and seatstay, aluminum rocker
Rear Travel
195mm
Rear Shock FOX Factory DHX2, 222mm x 70mm
Fork FOX Float 40 RC2 Performance Elite
Fork Travel 200mm
Head Tube Diameter Tapered, 44mm top | 56mm bottom
Headset Cane Creek 40 Series, zero-stack
Handlebar Race Face Atlas 35, 800mm width
Stem Race Face Atlas 35 DM, 50mm length
Grips ODI Elite Flow Lock On
Brakes SRAM Code RSC calipers, SRAM Centerline 203mm rotors
Brake Levers SRAM Code RSC
Drivetrain
1x
Shifters SRAM X01 DH, 7-Speed
Front Derailleur N/A
Rear Derailleur SRAM X01 DH, 7-Speed, clutch
ISCG Tabs ISCG05, 0mm offset
Chainguide e*thirteen LG1+ Top Guide, bash guard
Cranks Race Face SixC, 165mm length
Chainrings Race Face 32 tooth, direct mount
Bottom Bracket 83mm English threaded
Pedals N/A
Chain SRAM PCX1
Cassette e*thirteen 7-Speed Integrated, 9-21 tooth
Rims e*thirteen LG1+
Hubs e*thirteen LG1+
Spokes
Tires Maxxis Minion DHF | Maxxis Minion DHR II, 27.5" x 2.5" 3C Maxx Grip DH
Saddle ANVL Sculpt Cromo
Seatpost Thomson Elite
Seatpost Diameter 31.6mm
Seatpost Clamp Standard, single bolt
Rear Dropout / Hub Dimensions 12mm x 157mm, Syntace X12 axle system
Max. Tire Size 27.5" x 2.5"
Bottle Cage Mounts No
Colors TR Blue Gloss
Black Powder Matte
Warranty 3 full years for original owners from the date of purchase against material defect and manufacturing quality
Weight
N/A
Miscellaneous Molded rubber chainstay and downtube protection
160mm rear brake post mount
38 tooth max chainring size
Universal Transition derailleur hanger, compatible with Giddy Up trail models
Enduro MAX bearings
Price
$7,299.00
More Info
www.transitionbikes.com
